Helio A7 - CALL FOR PRICING

  • $0.00
    Unit price per


Aluminum folding wheelchair

A WORLD OF INFINITE POSSIBILITIES

An agile, fully adjustable wheelchair with excellent propulsion to take you even further. Sophisticated technology and high-performance 7000-series aluminum alloy give the Helio A7 unparalleled maneuverability and lightness.

By combining the latest hydroforming technologies with an aluminum alloy known for its excellent strength-to-weight ratio, we’ve created one of the lightest folding aluminum chairs on the market. Each HELIO A7 accessory and component was designed to reduce weight as much as possible for highly reactive handling.

Ease of propulsion is an undeniable plus and, with the HELIO A7, you’ll enjoy remarkable agility. The completely symmetrical hydroformed cross brace, oval tubing and pivot axles work together while the unique folding system maximizes the frame’s stability, saving you considerable energy on a daily basis

HELIO A7 is a fully adjustable wheelchair. Maximizing stability and reactivity, the forged vertical axle plate offers the industry’s most precise rear wheel adjustability. The composite armrests quickly convert from flip-back to single post for easy configuration. Height can also be adjusted with the flick of a finger.

The frame’s innovative design allows you to achieve a super-low 12-inch (30.5-cm) front seat-to-floor height. In addition to easier contact with the floor, this feature provides better foot propulsion. Or, move it beyond 20 inches (50.8 cm) to meet your most challenging needs.

FEATURES

Helio A7 Features


REINFORCED BACK CANE SUPPORT

For added stability and comfort.



An aluminum alloy renowned for its high strength-to-weight ratio.

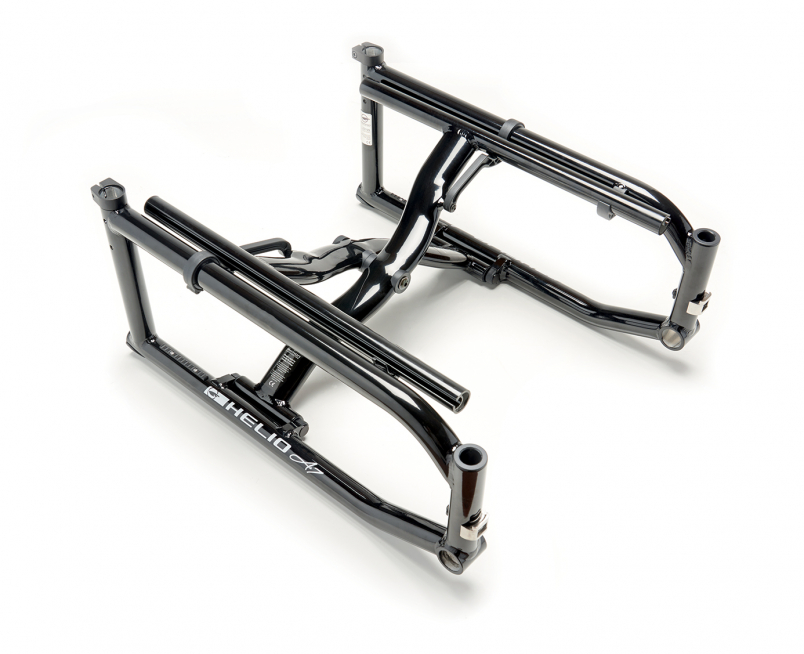

A unibody frame is much stronger and requires less maintenance than a standard two part frame. It also reduces weight while maximizing propulsion efficiency.

Entirely symmetrical aluminum cross brace for reduced torsion and better energy distribution throughout the frame.

High-precision tolerances and oversized pivot axles for best-in-class propulsion efficiency.

TECHNICAL SPECIFICATIONS

STRUCTURE

Frame

Folding

Material

7005 T6 aluminum

Transport Weight

13.6 lb. | 6.2 kg (16 x 16 without rear wheels, wheel locks, armrests, cushion, anti-tippers and footrest). Lightest configuration: 23.3 lb. | 10.6 kg without wheel locks and wheels.

Weight Limit

265 lb. | 120 kg — 350 lb. | 159 kg - HD Kit

DIMENSIONS


Seat width

14 in. to 22 in.
35.6 cm to 55.9 cm


Seat depth

14 in. to 20 in.
35.6 cm to 50.8 cm


Front seat to floor

13 in. to 21 ½ in.
33 cm to 54.6 cm


Rear seat to floor

12 ½ in. to 20 ¼ in.
31.8 cm to 51.4 cm


Back height

9 in. to 21 in.
22.9 cm to 53.3 cm


Armrest Height

8 in. to 14 in.
20.3 cm to 35.6 cm


Front frame angle

60°, 70°, 80°, 90°


Back angle

85° to 110°


Wheel camber

0°, 3°, 6°


Center of gravity

1 in. to 3 ¾ in.
2.5 cm to 9.5 cm


Overall width

20 ¾ in. min – 33 ½ in. max.
52.7 cm min – 85.1 cm max.

COLORS

  • Black
  • Acid green
  • Monster green
  • Ferrari red
  • Sunkissed orange
  • Burgundy
  • Fuchsia
  • Sapphire blue
  • Steel blue
