JAZZY EVO 614
Jazzy Evo 614 Features:
-
- New! Depth adjustable, limited recline memory foam high-back seat with headrest and single seat post allows the user to swivel
- New! 13.75” perforated drive tires
- New! 60-amp Dynamic LiNX Adjustable joystick speed dial enables you to adjust your speed comfort level
- New! New- Removable matte finish color through shrouds and 6-colors
- 300 lbs. weight capacity
- Up to 7 km/h
- 22” turning radius
- Battery range: 200 lbs: Up to 34.6 km
- Flip-up, height adjustable foot platform
- Full independent front and rear Active-Trac® ATX Suspension for enhanced performance over more varied terrain
- In-line joystick mount
- Convenient access to the controller and batteries while the user remains seated
pecifications
| Colour |

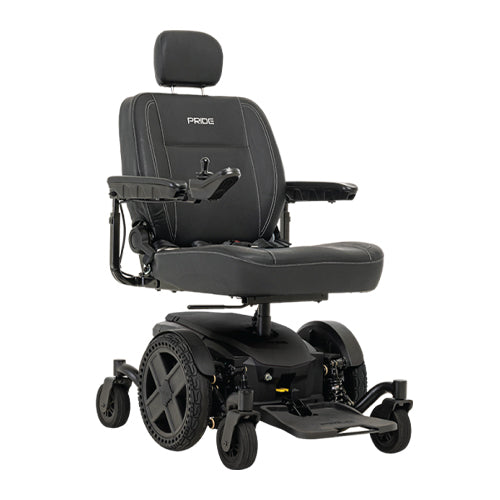

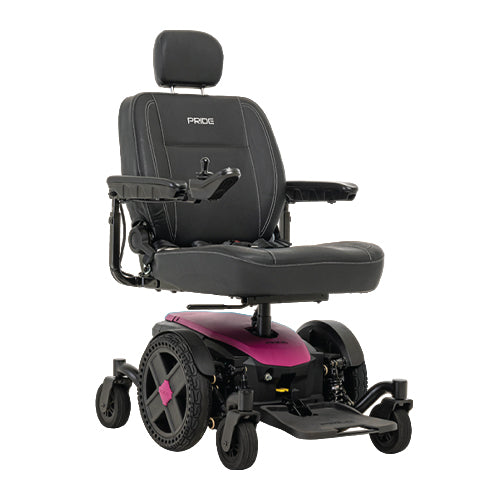

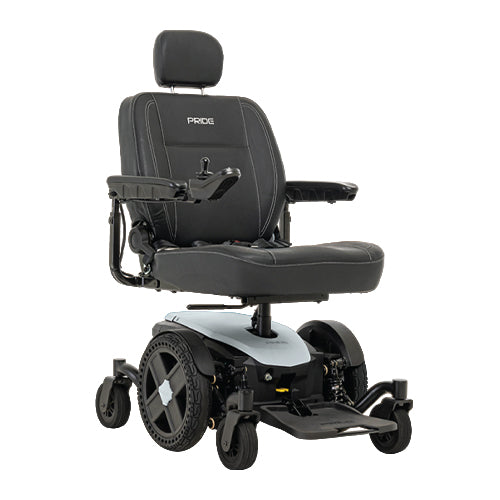

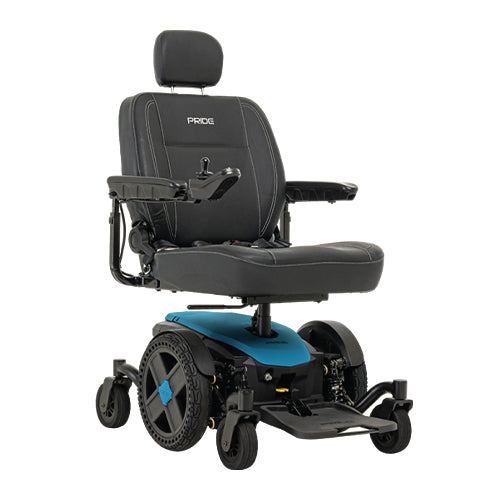

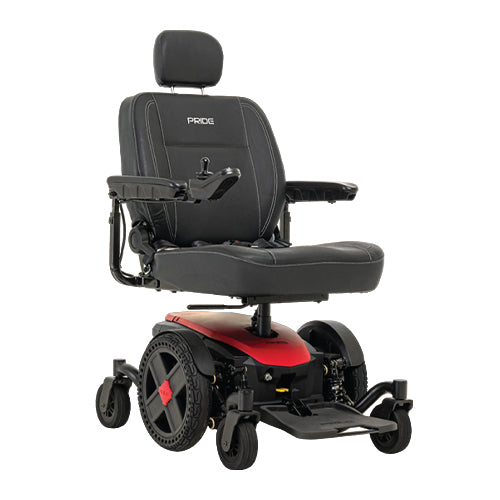

Black, Iceberg Blue, Jazzy Red, Robin's Egg, Sugarplum, White |
|---|---|
| Battery Type | |
| Weight Capacity | |
| Turning Radius |
22" |
| Width |
25.4" |
| Length |
40" |
| Maximum Speed |
Up to 7 km/h |
| Ground Clearance |
3" |
| Front Wheels |
6" casters |
| Drive Wheels |
13.75" perforated |
| Rear Wheels |
6" casters |
| Drivetrain |
Two in-line HD motors |
| Braking System |
Regenerative and electro-mechanical |
| Suspension Type |
Full independent front and rear Active-Trac® (ATX) Suspension |
| Standard Seat Sizes |
High-back, memory foam / Black vinyl / 16”x16”-18”, 18”x18”-20”, 20”x18”-20” |
| Seat-to-Floor Range |
22"-24" |
| Standard Electronics |
60A, Dynamic Linx |
| Battery Size(s) |
NF-22 (2) |
| Battery Charger |
5-amp, off-board |
| Per Charge Range |
200 lbs: Up to 34.6 km; 300 lbs: Up to 30.6 km |
| Total Weight |
255.5 lbs. / 115.9 kg |
JAZZY® 614 HD Features:
- 450 lbs. weight capacity
- Up to 4.25 mph maximum speed
- 22.75" turning radius
- Up to 11 miles per charge
- Deluxe contour, limited recline high back seat
- 6" casters on front & rear for maximum stability
- Universal, fixed, in-line joystick mount
- Dual enhanced in-line motors for greater efficiency, torque, range and performance
- 6” casters on front and rear for maximum stability
- Active-Trac® ATX Suspension for enhanced performance over more varied terrain
- Easy rear access to batteries
- Seating up to 24” W x 24” D
- Toolless shroud removal
- Easy serviceability
- Flip-up, height-adjustable foot platform
TRANSIT TIE DOWNS AVAILABLE - $90 EXTRA
Jazzy® 614 HD Specifications
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® 614 HD
|
| Weight Capacity | 450 lbs. |
| Maximum Speed3 | Up to 4.25 mph |
| Ground Clearance1 | 2.25" |
| Turning Radius1 | 22.75" |
| Overall Length1,2 | 35.5" |
| Overall Width1 | 25.25" |
| Drive Wheels | 14" solid |
| Front Wheels | 6" solid casters |
| Rear Wheels | 6" solid casters |
| Suspension | Active-Trac® (ATX) |
| Drivetrain | Two motor, in-line, Mid-Wheel 6® |
| Braking System | Regenerative and electro-mechanical |
| Standard Electronics | 50A, Dynamic Shark Controller |
| Battery Charger | Off-board, 5 amp |
| Per-Charge Range3,6 | Up to 11 miles |
| Battery Requirements | (2) 12 volt, NF-22 |
| Battery Weight5 | 37 lbs. each |
| Base Weight | 122 lbs. |
| Standard Seat Weight | 52 lbs. |
| Standard Seat | 20" x 18-20", 22" x 20"-22" |
| Max. Seat Dimensions | 24" x 24" |
| Warranty | 5-year limited on frame; 13-month limited on batteries; 2-year limited on electronics; 2-year limited on drive motors |
