JAZZY CARBON HD
Weighing just 32 lbs. and boasting a 400-lb. weight capacity, the Jazzy Carbon HD is a game-changing heavy-duty travel power wheelchair. It folds and locks into position in mere seconds and will keep you comfortable with a padded seat back and extra-wide foot platform.

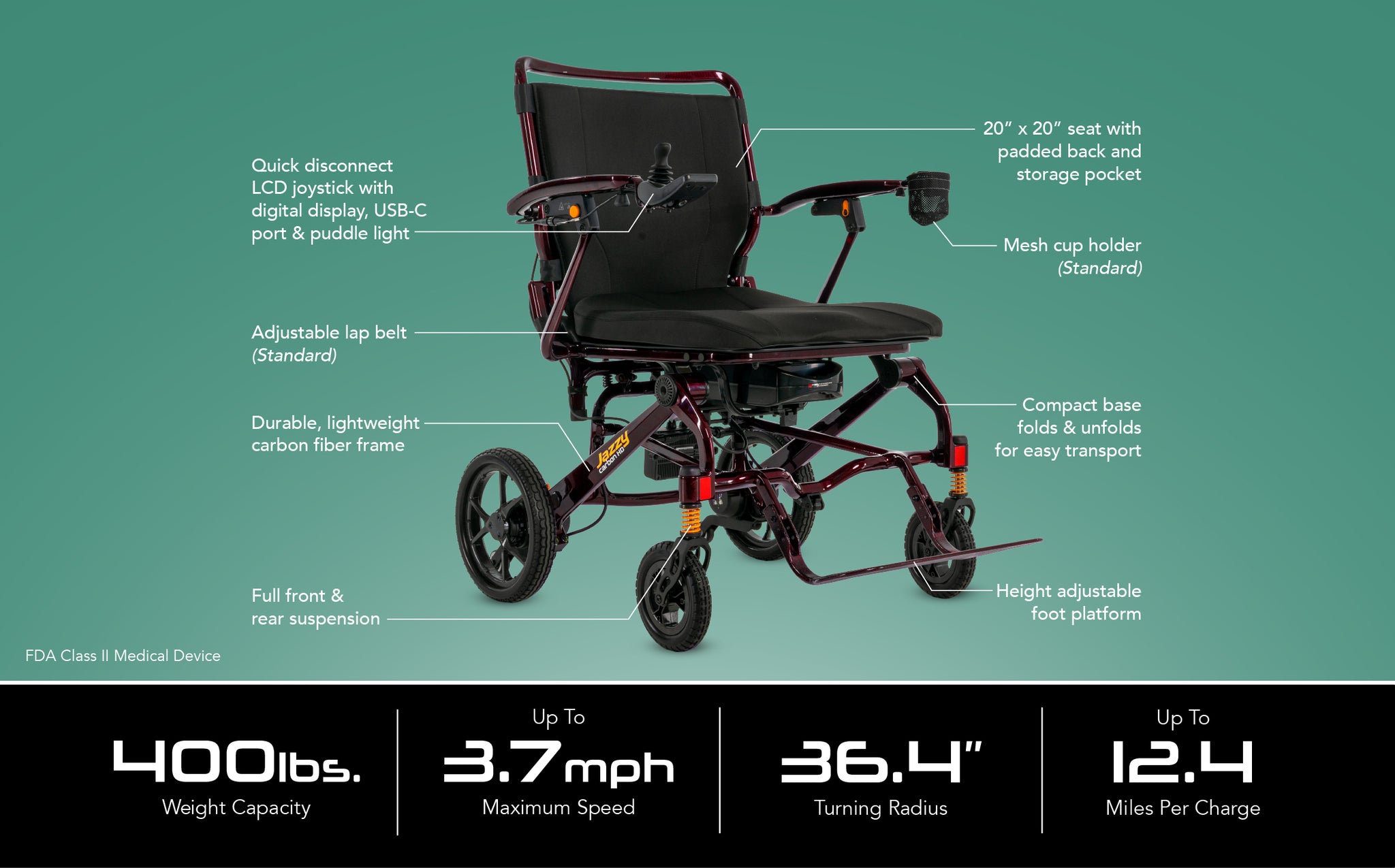

Jazzy® Carbon HD Features:
- Unit weighs 32.2 lbs. without the battery
- 400-lb. weight capacity
- Durable carbon fiber frame
- Front and rear suspension
- Top speed of up to 3.7 mph
- Battery range of up to 12.4 miles
- 20" x 20" seat
- Easy fold design that locks into folded position
- Folded dimensions: 31.3” L x 26.4” W x 13 H
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion
- Extra-wide adjustable foot platform 17.25” W x 5.9” D
- 20 Ah lithium battery (standard)
- Storage pocket on back of seat
- Quick disconnect LCD joystick with digital display, USB-C port & puddle light
- Mesh cup holder, cushion, and adjustable lap belt, (standard)
- K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.

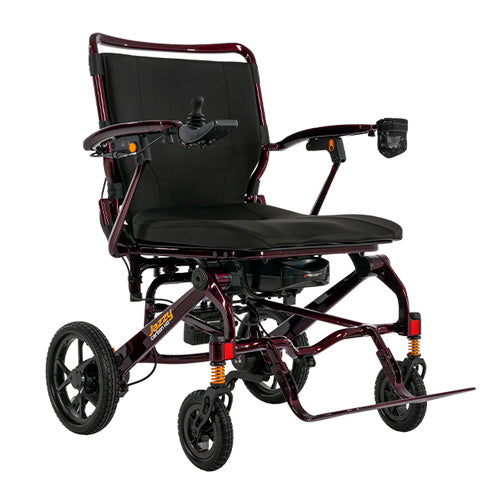

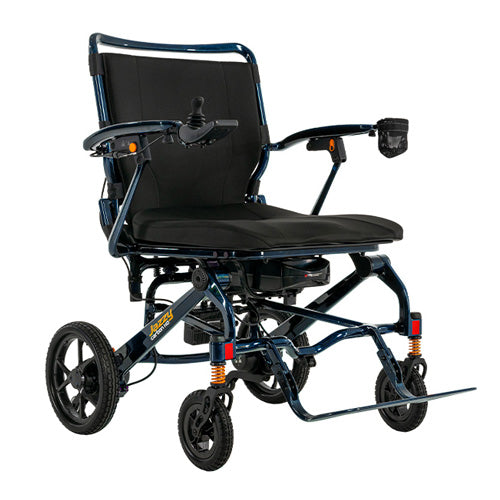

- Available Colors: Black Cherry, Night Sky
Specifications
| Colour | |
|---|---|
| Suspension | |
| Weight Capacity | |
| Battery Type | |
| Turning Radius |
36.4" |
| Maximum Speed |
Up to 6.0 km/h |
| Ground Clearance |
1” at motor |
| Overall Length |
36.81" |
| Overall Width |
26.37" |
| Front Wheels |
6.5" |
| Rear Wheels |
10.6" |
| Battery Sizes |
Type: Lithium battery box. Size 20 Ah |
| Total Weight Without Batteries |
32.2 lbs. without batteries |
| Total Weight With Batteries |
39.7 lbs. |
| Standard Seating |
Dimensions: 20" x 20" seat. Seat sling with removable cushion |
| Drivetrain |
24V 250W Brushless motors |
| Battery Charger |
2 Amp |
